Key Takeaways
- 1An induction furnace lining isn't just one product, it's really three working together: the main lining material, a protective coating for the electrical coil underneath it, and a repair material used to patch worn spots and keep the furnace running longer.
- 2The right lining material depends on what metal you're melting, not on how big your furnace is or which option costs less. Iron and mild steel need one type, stainless steel needs another, and manganese steel needs a third.
- 3The coil coat's real job is safety: it's a protective layer between the main lining and the electrical coil that powers the furnace, so if molten metal ever breaks through the lining, it doesn't reach and damage the coil.
- 4Patching lets you repair worn spots so the furnace can keep running longer between full relines. But it only works if the rest of the lining is still in good shape, once wear gets too close to the coil, a full reline is needed instead.
- 5Many melting shops buy these three materials separately without thinking of them as a matched set. That's a common reason two furnaces melting the exact same metal can end up with very different lining life.
What Does a Complete Induction Furnace Refractory Package Include?
A coreless induction furnace lining is a package of three materials doing three different jobs, ramming mass for the working lining, coil coat to protect the coil underneath it, and patching material to extend the campaign once the furnace is running, not a single product you buy once per reline. Melting shops that treat these as one purchase, rather than three coordinated ones, tend to see inconsistent lining life between furnaces running the identical charge, because whichever material got the least attention is usually the one causing the variation.
Quick answer: Ramming mass forms the working lining and is selected by melt chemistry, not furnace size. Coil coat goes on before ramming and protects the coil with dielectric strength, mattering most if the working lining is ever penetrated. Patching material rebuilds worn zones between relines. All three need to be right; getting one wrong undermines the other two.
How Is the Working Lining Selected and Installed?
Ramming mass is classified by chemical base into three families, and the right one is determined by the metal you're melting, not by furnace capacity or cost per kilogram.
| Family | Base | Best suited for | Typical max temperature |
|---|---|---|---|
| Silica | SiO₂ 95-98% | Grey iron, mild steel | 1650–1700°C |
| Alumina | Al₂O₃ 85-92% | Stainless steel, tool steel | 1700°C |
| Magnesia | MgO 85-95% | Manganese steel, basic-slag alloys | 1750°C |
Installation matters as much as grade selection. The mass is rammed in layers against a former, coil-side first with a protective coat already in place, and the lining is sintered on the first heat using a controlled temperature schedule, rushing the sinter is one of the most common causes of early lining failure. For the full step-by-step, sintering schedule and grade selection detail, see our complete ramming mass selection guide.
What Protects the Coil During Ramming and Service?
Coil coat, also called coil grout, is applied over the coil insulation before the working lining is rammed. Its job is protective, not structural: it conducts heat away from the coil during service and, critically, provides the dielectric barrier that matters if the working lining is ever penetrated. A fused alumina coil coat gives materially higher dielectric strength than an older silicate-bonded grout, which is the property that actually determines what happens if metal ever reaches that layer.
| Property | Fused alumina coil coat | Fused alumina patching material |
|---|---|---|
| Role | Coil grout, applied before ramming | Primer / undercoat / patch repair |
| Al₂O₃ | ~91% | ~83% |
| Max use temperature | ~1750°C | ~1760°C |
| Water demand | ~10-12% for casting | ~30-40% of dry weight |
| Shelf life | 9 months | 1 year |
See full specifications on our coil coat and patching material page. Note that these two products serve different stages of the same furnace's life, coil coat goes in once before the lining is rammed, patching material is used repeatedly across the campaign as needed.
How Do You Extend a Lining Campaign With Patching?
Patching material rebuilds localised worn areas, a thin spot from charge impact, erosion near the metal line, so the furnace completes more heats before a full reline. It is applied as a primer or undercoat over the cleaned, sound area and built up from there. The critical qualifier is that the surrounding lining has to still be structurally sound: patching a lining that has worn generally thin toward the coil-side insulation doesn't rescue it, and repeated patching of a badly worn lining is a common precursor to a metal breakout rather than a genuine life-extension strategy.
A shop that inspects on a fixed schedule and patches proactively, rather than reactively after a problem heat, typically sees meaningfully more heats per campaign for the same ramming mass grade. The material choice matters less here than the discipline of when it's used.

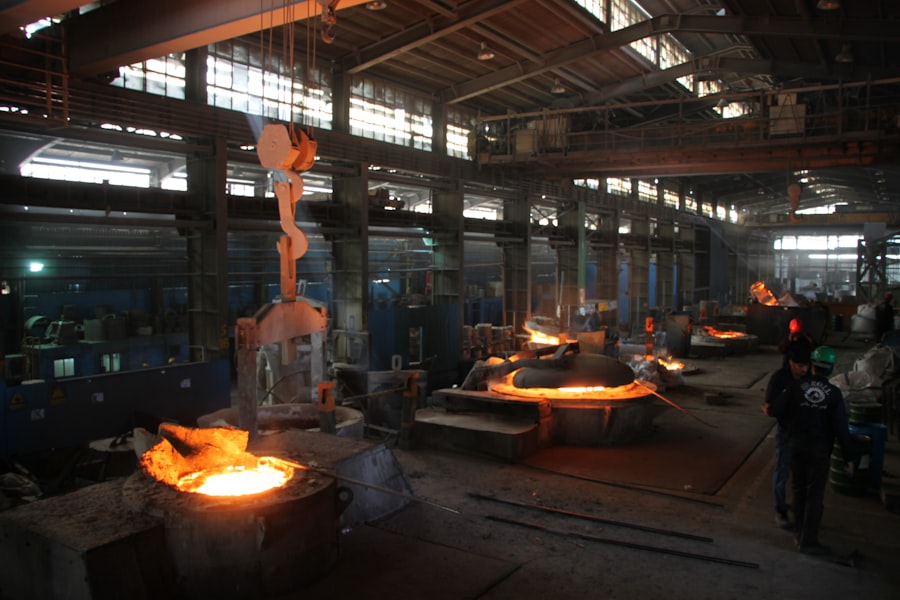

SAPL Supply for Induction Furnace Melting Shops
Why this matters: most melting shops buy ramming mass on a schedule and treat coil coat and patching as afterthoughts, ordered only when something has already gone wrong. Specifying all three together, matched to your melt chemistry and coil dimensions, is what actually produces consistent campaign life across a shop's furnace fleet, not just on the newest furnace.
Shanker Agencies supplies silica, alumina and magnesia ramming mass and coil coat and patching material as a coordinated package for induction furnace melting shops. Tell us your furnace capacity, coil dimensions and the metal you're melting, and our engineering team will confirm grade and quantity for all three materials together.
Need Expert Refractory Advice?
45+ years of expertise · Authorized CUMI, Crown Ceramics & Divine Cerawool dealer
Have questions about the topics in this article? Our refractory engineers review your specific application and recommend the right solution, no obligation.
Frequently Asked Questions
What refractory materials does a coreless induction furnace actually need?
Three, not one: ramming mass for the rammed working lining that contacts the metal, coil coat applied over the coil insulation before that lining is rammed, and patching material to repair worn areas and extend the campaign once the furnace is in service. Buying only the ramming mass and treating coil coat and patching as optional extras is the most common gap in a melting shop's refractory purchasing, and it shows up as coil damage or shorter, less consistent campaign life.
Why do I need coil coat if I'm already ramming a full working lining?
Coil coat isn't there to replace the working lining, it's the layer between the coil insulation and that lining, and it exists for the failure case: if the working lining is ever penetrated by metal, whether from a crack, a thin spot, or reaching end of campaign, the coil coat is what stands between that penetration and direct coil contact. A fused alumina coil coat gives materially higher dielectric strength than a silicate-bonded grout, which is the property that actually matters here, not compressive strength or refractoriness.
How is ramming mass grade actually selected?
By melt chemistry, not by furnace size or price per kilogram: silica-based mass for grey iron and mild steel (up to roughly 1700°C), alumina-based for stainless and tool steel (up to roughly 1700-1750°C, grade dependent), and magnesia-based for manganese and basic-slag alloy steels (up to roughly 1750°C). Using a silica lining on a basic-slag alloy, or an alumina lining where a cheaper silica grade would do, are the two most common selection mistakes, and both come from selecting on furnace size rather than the metal actually being melted.
What is the actual role of patching material in an induction furnace?
Patching rebuilds worn, localised areas of an otherwise sound lining, a thin spot, an eroded zone from charge impact, so the furnace can complete more heats before a full reline is needed. It only works on a lining that is still structurally sound. Patching does not rescue a lining that has worn through toward the coil-side insulation, and repeatedly patching a badly worn lining, rather than relining, is a common precursor to a metal breakout.
Can I mix ramming mass and coil coat from different sources?
There's no chemical requirement that they come from the same manufacturer, ramming mass and coil coat perform independent jobs and don't need to be chemically matched to each other. What matters is that each is correctly matched to its own job: ramming mass to your melt chemistry, coil coat to the dielectric protection your coil needs. Sourcing both from one supplier is mainly a logistics and accountability convenience, not a technical requirement.
How often should an induction furnace melting shop expect to patch versus reline?
This varies by furnace size, melt chemistry and operating discipline rather than following a fixed interval, but the general pattern is: patching happens between scheduled inspections to rebuild specific worn zones, while a full reline happens when wear is general across the lining rather than localised, or when the lining has reached the sintering vendor's expected heat count for that grade. A shop that inspects on a fixed schedule and patches proactively typically gets meaningfully more heats per campaign than one that reacts only after a problem heat.
