Fireclay Bricks | Shaped Refractories

AL-40 Fireclay Bricks

  • IS 8
  • 40% alumina
  • Formerly STD-40
  • SK 34
  • 40% min

    Al₂O₃ Content

    Typical value

  • 30 MPa min

    Cold Crushing Strength

    Typical value

  • 1200°C

    Max Service Temperature

    Typical value

  • 3.0% max

    Fe₂O₃ Content

    Typical value

  • 23% max

    Apparent Porosity

    Typical value

  • Supplying refractories since 1980
  • Dispatch from Delhi
  • Same-day dispatch of standard stock items
  • Pan-India & export

Technical Specification

Typical values. Exact values depend on manufacturer, formulation and applicable test standard.

Chemical Composition (Typical)

ParameterValue
Al₂O₃ content40% min
Fe₂O₃ content3.0% max

Physical Properties (Typical)

ParameterValue
Bulk density2.10 g/cc
Apparent porosity23% max
Cold crushing strength30 MPa min
Thermal conductivity1.5 W/mK max @1000°C
Refractoriness under load (RUL)1300°C min
Max service temperature1200°C
Standard brick size230 × 115 × 75 mm

AL-40 Datasheet

Chemical analysis, physical properties, test methods and available sizes for AL-40 Fireclay Bricks, shared on request.

Request Datasheet

Key Characteristics

Taken from the AL-40 catalogue values above.

  • Alumina content

    40% min Al₂O₃

  • Service temperature

    Rated to 1200°C

  • Crushing strength

    CCS 30 MPa min

  • Standard size and shapes

    230 × 115 × 75 mm; shapes to drawing

  • Bulk density

    2.10 g/cc

Typical Applications

Fireclay Bricks in service

Specified for AL-40

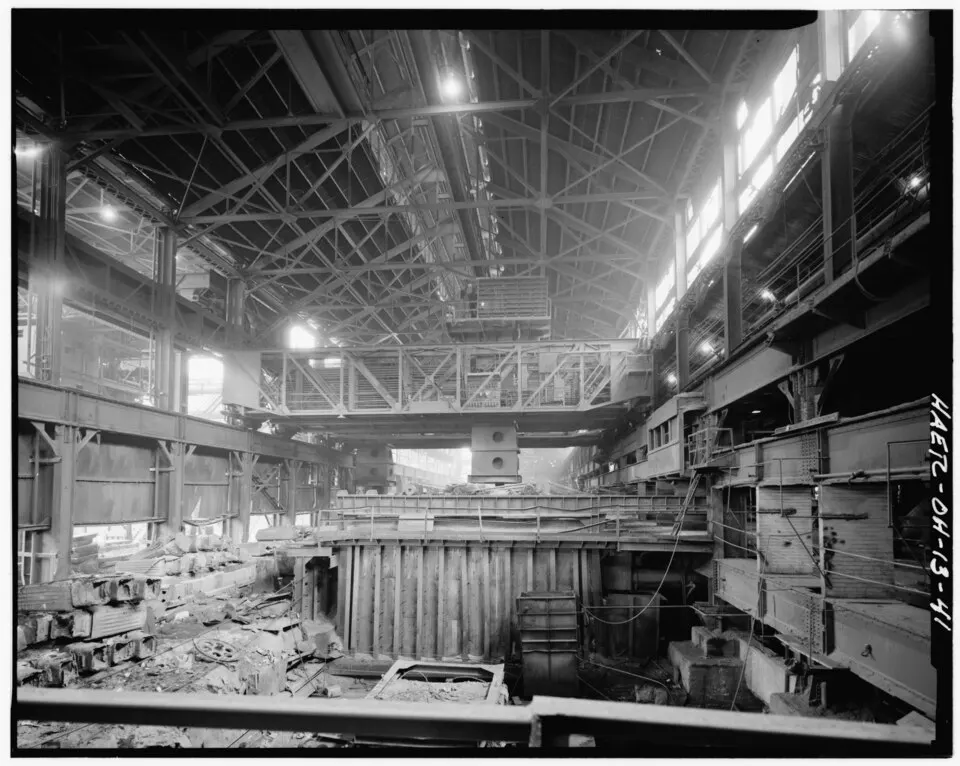

  • Steel & iron

    Soaking pit walls (Hot-face duty with repeated heating)

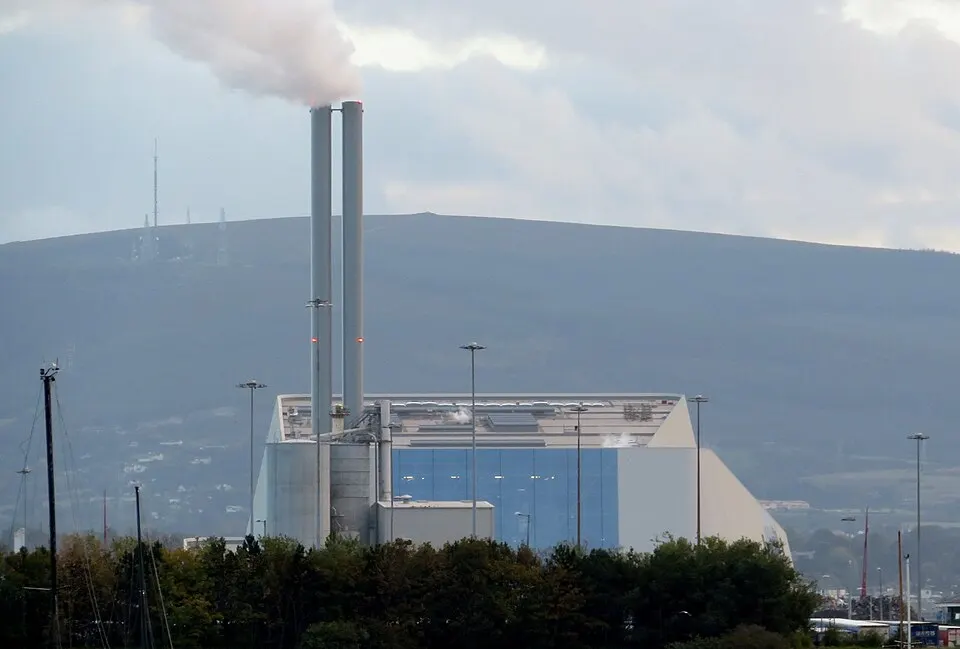

  • Power, boilers & incineration

    Waste incinerator linings (Higher temperature and ash attack)

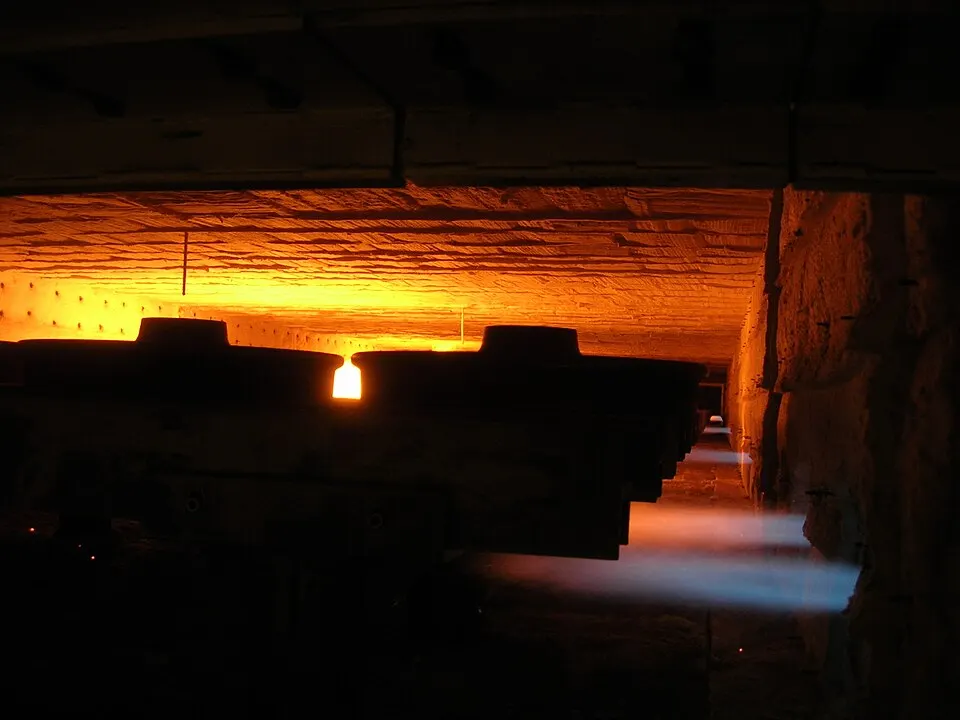

  • Furnaces & linings

    General furnace hot face (Highest-rated IS 8 fireclay grade)

Also used across the fireclay bricks range

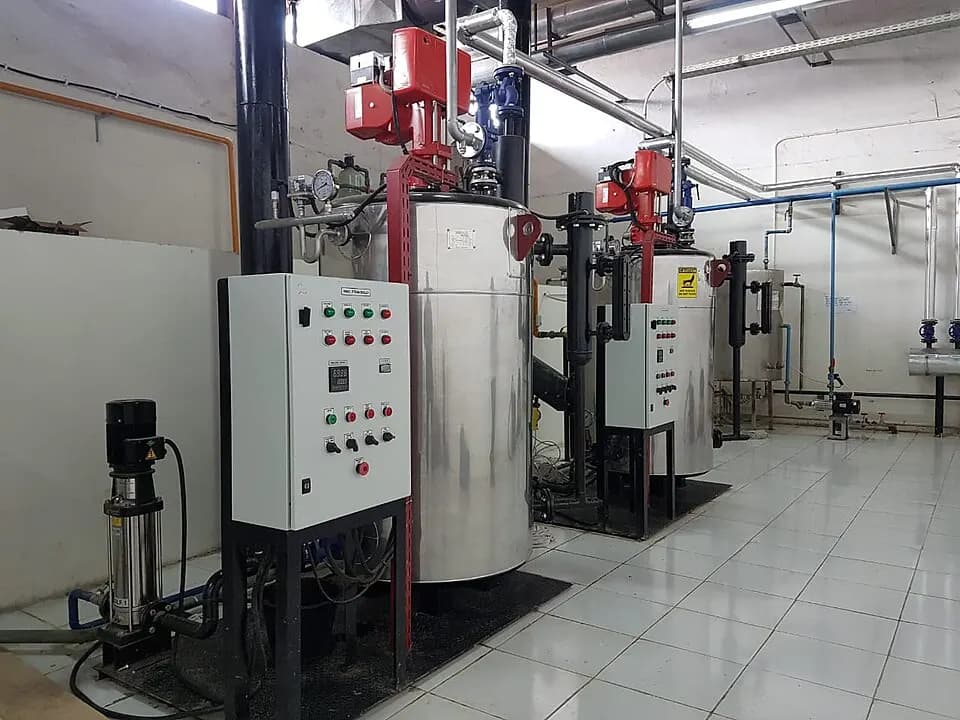

  • Power, boilers & incineration

    Boiler back walls & settings

  • Furnaces & linings

    General industrial furnace linings; Backup linings behind working lining

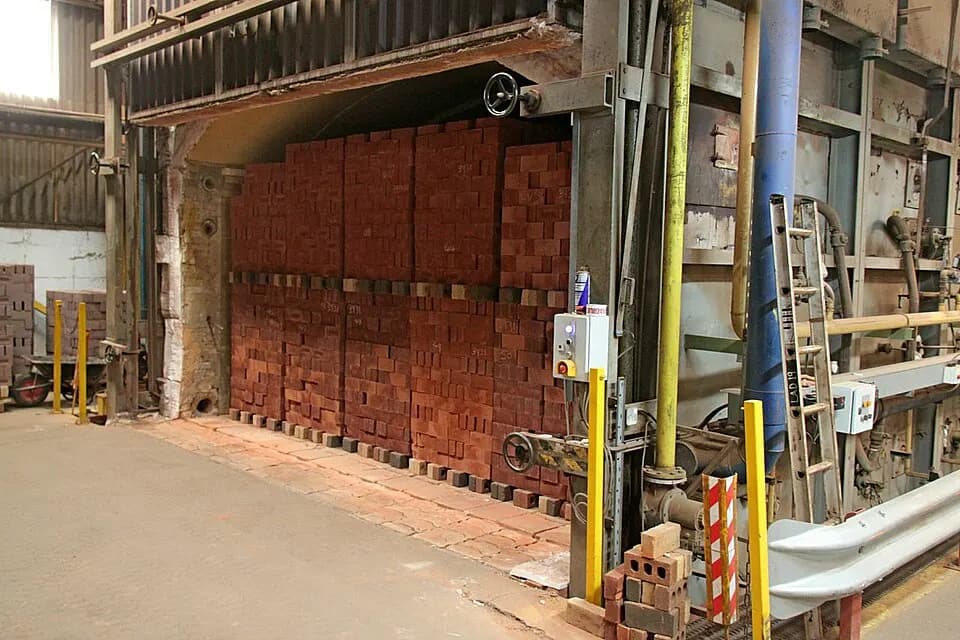

  • Kilns & ceramics

    Kiln car superstructures

Available Shapes

  • Straight brick shape

    Straight Brick

  • Wedge brick shape

    Wedge Brick

  • Arch brick shape

    Arch Brick

  • Skew brick shape

    Skew & Special Shapes

Standard brick 230 × 115 × 75 mm. Shapes to drawing, sample or requirement.

Send Your Drawing

Arch, wedge, skew and special shapes are available against drawing.

FAQ

What is AL-40?

AL-40 is the 40% min Al₂O₃ grade in our fireclay bricks range, rated to 1200°C. Typical catalogue values: Al₂O₃ content 40% min; Fe₂O₃ content 3.0% max; bulk density 2.10 g/cc; apparent porosity 23% max; cold crushing strength 30 MPa min; refractoriness under load (RUL) 1300°C min; thermal conductivity 1.5 W/mK max @1000°C; max service temperature 1200°C. It is also referred to as 40% alumina, STD-40 and SK 34. Standard: IS 8. Confirm the exact figures on the grade datasheet before specifying.

What is the alumina content of AL-40?

AL-40 carries 40% min Al₂O₃ with Fe₂O₃ 3.0% max. Export enquiries may quote SK 34 for this grade; we match SK codes by alumina content.

Where is AL-40 commonly used?

AL-40 is typically specified for soaking pit walls, waste incinerator linings and general furnace hot face. Applications across the fireclay bricks range also include boiler back walls & settings, general industrial furnace linings, kiln car superstructures and backup linings behind working lining. Send us your operating conditions and we will confirm the grade.

What shapes and sizes are available for AL-40?

The standard brick is 230 × 115 × 75 mm. We also supply straight, wedge, arch, end arch, side arch, circular, skew and split shapes, and special shapes to drawing. Send the drawing and quantity for a quotation.

How do I select between AL-35 and AL-40?

AL-35: 35% (nominal) Al₂O₃, rated to 1200°C. AL-40: 40% min Al₂O₃, rated to 1200°C. Higher alumina generally brings higher refractoriness and slag resistance. Send us your application and operating temperature and we will confirm the grade.

Can you supply custom shapes as per drawing?

Yes. Arch, wedge, skew and special shapes are available against drawing, sample or requirement. Send the drawing, dimensions and quantity through the quote form, WhatsApp or +91 98999 57888.

Need AL-40, or unsure between AL-35 and AL-40?

Send us your application, operating temperature, dimensions and quantity. Our refractory team will recommend the suitable grade and supply route.

  • Technical support

    Grade selection from our refractory team

  • Manufacturer-backed

    Supplied from established refractory makers

  • Pan-India & export

    Supply across India, GCC, ASEAN and Africa

Values are typical and compiled by Shanker Agencies Pvt. Ltd. from standard industry data and published manufacturer specifications. They are indicative, not a guarantee. Confirm the exact grade datasheet before specifying. For a certified datasheet or quotation, contact info@shankeragencies.com or +91 98999 57888.
